A web-based data Acquisition system that automatically collects and manages data in a Modbus-based environment that is widely used for industrial use.

System Operation Environment

• x86, x64, ARM based Windows, Linux, Mac, Etc Operation System.
• Modbus-ASCII/RTU/TCP Communication Support
• Acquisition Data is management DBMS(MariaDB, MySQL).

Web-based management

Web-based UI is used to set up and manage all functions required by the system, and it operates as a Java platform, so it can be configured without being dependent on hardware and operating systems.

‍

Modbus Communication management

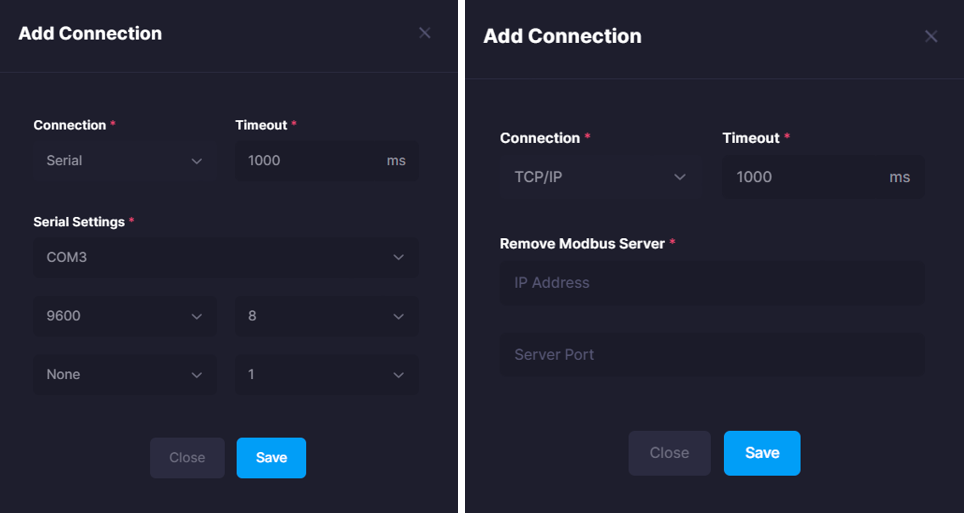

Both the communication environment setting and detailed protocol setting menus tailored to the type of Modbus can be configured as a web-based system, and users can easily register, modify, and delete them.

‍

‍

Modbus Function Support

It offers various forms of FC(Function Code) provided by the standard Modbus, which can be easily set up and edited on the Web.

1. FC Code 01/02/03/04/05/06/15/16 Support
2. All Function code is available to MODBUS ASCII/RTU/TCP

‍

‍

The collected data supports simple transformations and allows you to specify variable values and formats stored in the DB.

‍

‍

The connection to the database is configured using a DB stored procedure, and additional user-defined procedures are also available.

(Basically Schema provides for DB configuration for MariaDB/MySQL)

‍

The cycle of reading Modbus data and updating the value to the buffer is possible in the system setting, and the cycle of delivering data to the DB is set using a separate field in the DB.

All Data management by DBMS.

‍

‍
